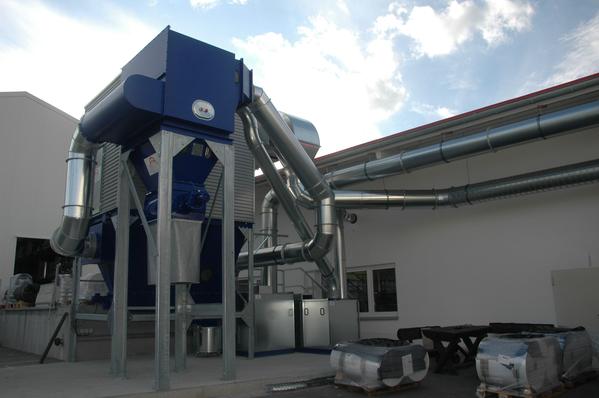

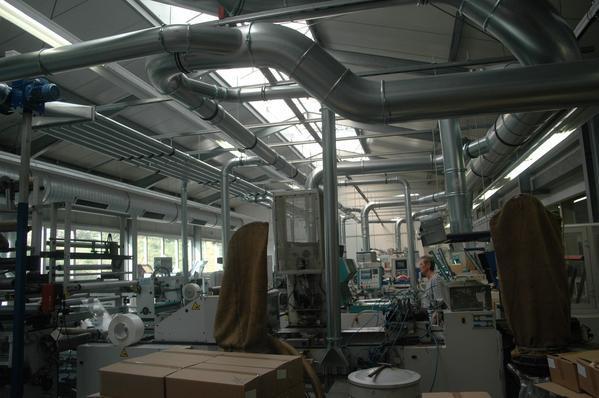

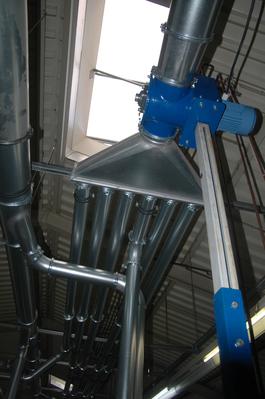

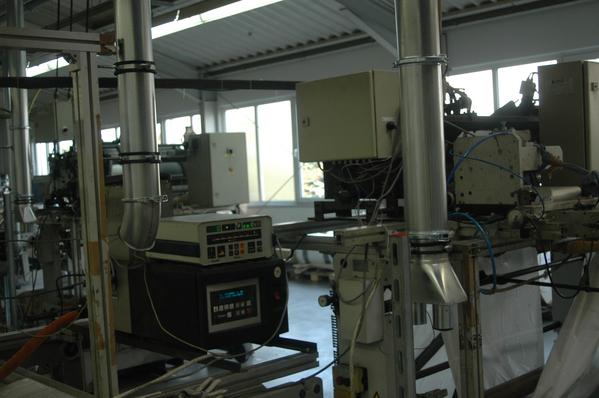

Absaug- und Entsorgungsanlage für PVC Randstreifen und Stanzabfälle

Extraction and waste disposal system for PVC edge strip and punching

Einsatzgebiete: Folienherstellung, Kunststoffverpackung, Platten- / Halbzeug- / Profilherstellung, Dämmstoffherstellung, Kunststoffdämpfe, Photovoltaikherstellung.

Bei diesem Projekt werden an 18 Maschinen Randstreifen und Stanzabfälle abgesaugt, die bei der Herstellung von Beuteln, Kurier- und Versandtaschen anfallen. Vor der Anlageninbetriebnahme wurden an den Maschinen die Abfälle einzeln durch kleine, mobile Absauganlagen abgesaugt und aufgewickelt.

Da die Maschinen in zwei unterschiedlichen Produktionshallen aufgestellt sind, wurden zwei getrennte Rohrleitungsgruppen installiert.

In der einen Gruppe befinden sich 13 Absaugstellen für Randstreifen. Die Randstreifen werden durch Einzelrohrsysteme zu Rohrcuttern geführt und dort zerschnitten. Die Stanzabfälle werden in einem separaten Rohrsystem abgesaugt und zusammen mit den geschnittenen Randstreifen über einen Transportventilator dem Materialabscheider zugeführt. Dort fallen die Abfälle dann in Big-Bags.

In der zweiten Gruppe werden durch einen kleineren Ventilator Stanzabfälle abgesaugt und ebenfalls dem Materialabscheider zugeführt. Die staubhaltige Luft wird über eine Schneckenfilteranlage gereinigt und den Produktionsräumen wieder zugeführt.

Application: Film making, plastic packaging, plate- / semi-finished / profile production, insulating materials, plastic fumes , photovoltaic manufacturing.

At this project on 18 machinery edge strip and punching are extracted, incurred in the production of different bags. Before commissioning the plant wastes were extracted and individually wrapped by small mobile extraction systems at the machinery.

Since the machinery are set up in two different production facilities , two separate piping were installed. In one group there are also 13 extraction points for edge strip. The edge strip are led to pipe cutters by single pipe systems and cut there.

The punching waste is sucked into a separate pipe system and supplied together with the cut edge strip to the material separator by a transport fan.

There the waste is filled into big bag. In the second group slugs are also extracted and fed to the material separator by a smaller fan.

The dust-laden air from the material separator enters the filter system through which the purified air is returned to the operating rooms.

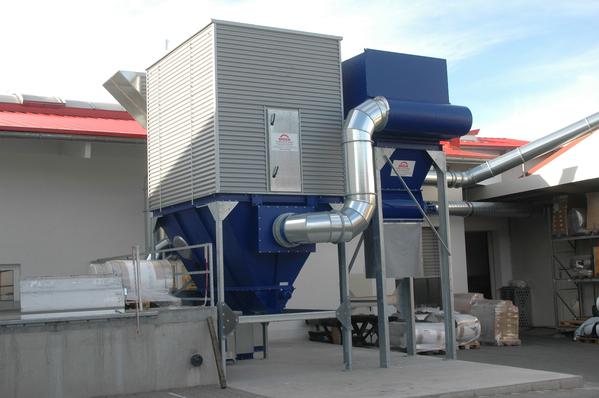

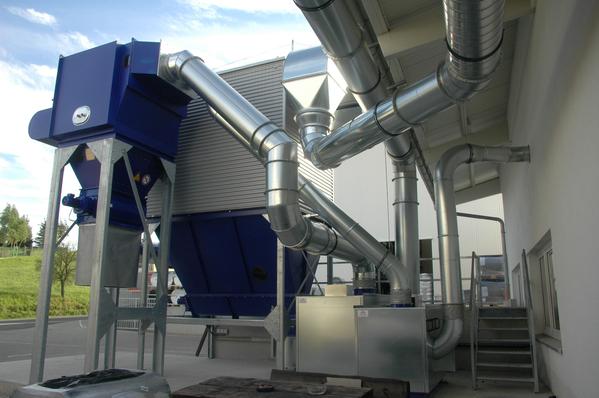

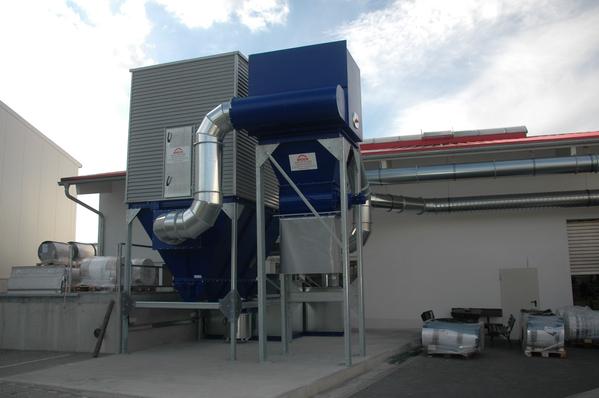

Absaug- und Entsorgungsanlage für PVC Randstreifen und Stanzabfälle / Extraction and waste disposal system for PVC edge strip and punching

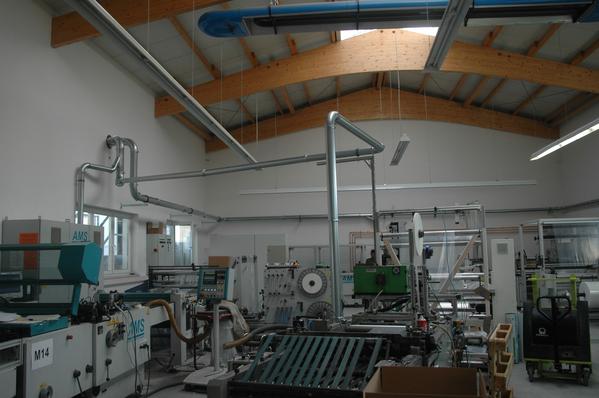

Absaug- und Entsorgungsanlage für PVC Randstreifen und Stanzabfälle / Extraction and waste disposal system for PVC edge strip and punching
Absaug- und Entsorgungsanlage für PVC Randstreifen und Stanzabfälle / Extraction and waste disposal system for PVC edge strip and punching
Absaug- und Entsorgungsanlage für PVC Randstreifen und Stanzabfälle / Extraction and waste disposal system for PVC edge strip and punching
Absaug- und Entsorgungsanlage für PVC Randstreifen und Stanzabfälle / Extraction and waste disposal system for PVC edge strip and punching
Absaug- und Entsorgungsanlage für PVC Randstreifen und Stanzabfälle / Extraction and waste disposal system for PVC edge strip and punching
Absaug- und Entsorgungsanlage für PVC Randstreifen und Stanzabfälle / Extraction and waste disposal system for PVC edge strip and punching
Absaug- und Entsorgungsanlage für PVC Randstreifen und Stanzabfälle / Extraction and waste disposal system for PVC edge strip and punching

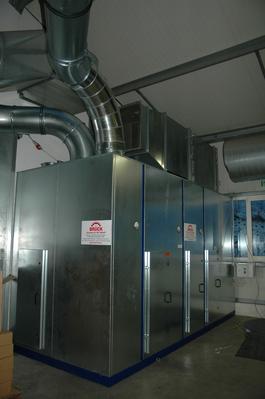

Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen

Extraction system for plastic vapor

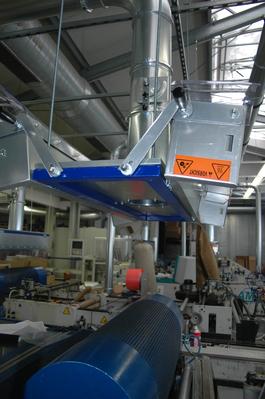

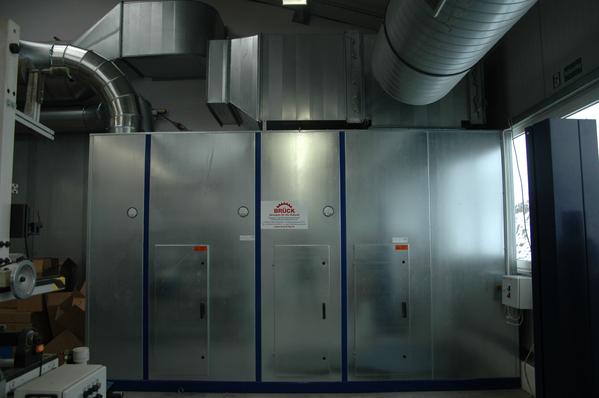

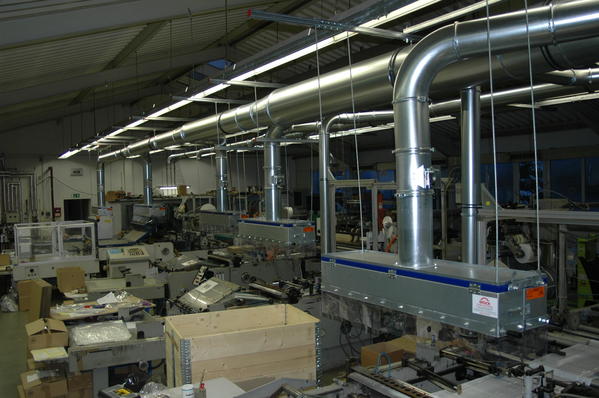

Bei diesem Projekt werden Dämpfe, die bei der Herstellung von Kunststoffverpackungen und Folientaschen entstehen abgesaugt.

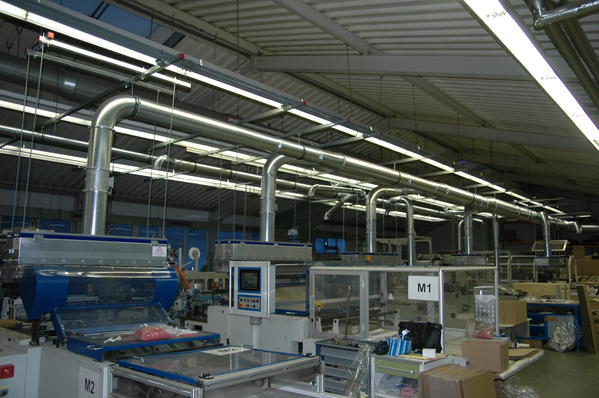

Es handelt sich um 16 Maschinen, die jeweils mit einem Schweißbalken ausgestattet sind. Über den einzelnen Maschinen ist eine spezielle Absaughaube montiert. Diese Hauben sind aufklappbar und erleichtern somit den Zugriff zur Maschine.

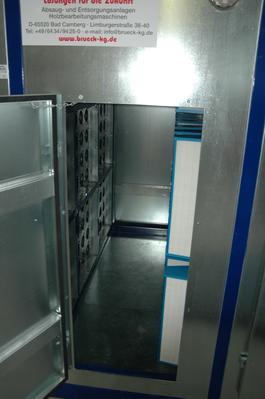

Alle Hauben sind mit Drosselklappen ausgerüstet, mit denen der Luftstrom eingestellt werden kann. Ein Rohrsystem verbindet alle Hauben mit einer Filteranlage. Diese Filteranlage, die im Produktionsraum aufgestellt wurde, verfügt über einen integrierten Reinluftventilator. In der Filteranlage sind Vorfilter eingebaut, die dazu dienen die Schmutzpartikel zu filtern.

Danach durchströmt die Luft Aktivkohlepatronen und zusätzliche Mikrofilter. Durch dieses Filtrationssystem kann die abgesaugte Luft dann den Produktionsräumen wieder zugeführt werden. Dadurch werden enorme Heizkosten eingespart, da kein zusätzliches Zuluftsystem mit Heizanlage notwendig ist. Im Sommer wird die warme Luft ins Freie geleitet werden.

Mit der Absauganlage wird zusätzlich auch entstehende Wärme abgesaugt.

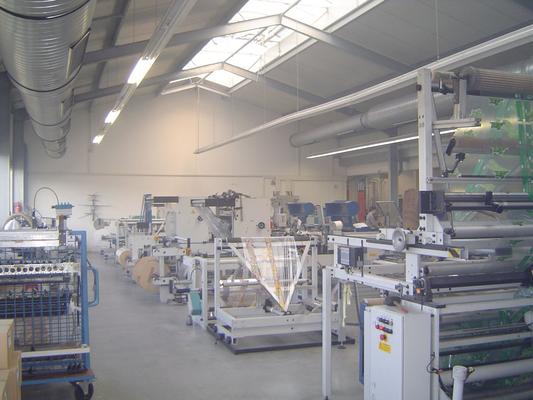

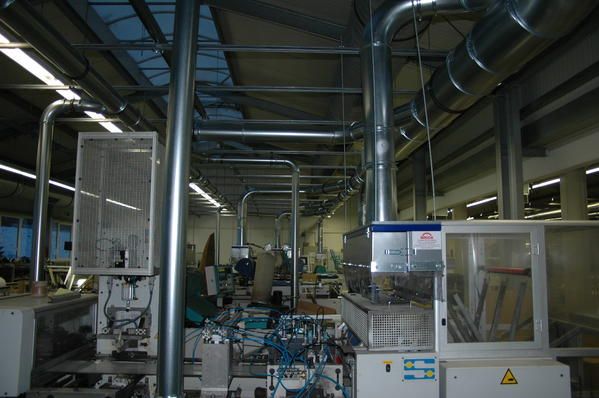

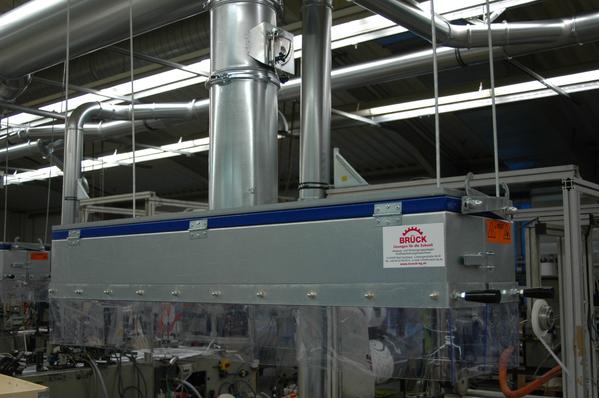

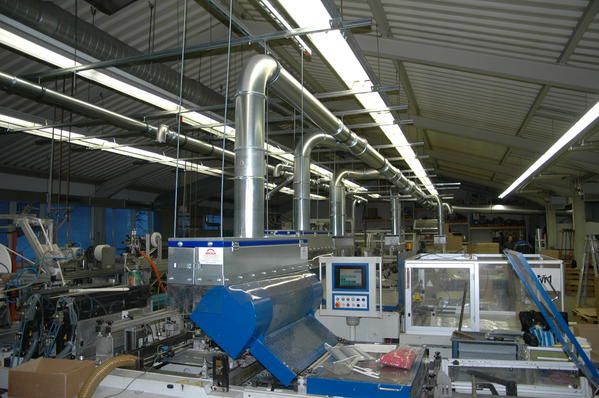

Auf den Bildern 9 & 10 ist sehr gut der Zustand vor und nach der Installation der Anlage zu erkennen. Die Hallenluft ist deutlich sauberer, ein angenehmeres und sicheres Arbeiten ist nun möglich.

In this project vapors that accrue in the production of plastic packaging bags and film are extracted.

There are 16 machines which are each equipped with a sealing bar. On each machine is a special exhaust hood installed.

All covers are equipped with butterfly valves with which the air flow can be adjusted. A piping system connects all hoods with a filter system. This filter system which is installed in the production area has an integrated clean air fan. In the filter system a pre-filter has been installed to absorb the dirt particles.

Afterwards the air passes through an activated carbon filter and additional microfilter. Through this filtration system, the extracted air is supplied to the production facilities . This enormous heating costs are saved because no additional heating system is necessary. In the summer, the warm air will be discharged to atmosphere. With the extraction system in addition also the generated heat is removed.

In figures 9 and 10 you can see condition before and after the installation of the extraction system. The indoor air is much cleaner and more comfortable and secure work is possible.

Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor
Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor
Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor
Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor
Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor
Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor
Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor
Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor
Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor
Absauganlage für Kunststoffdämpfe bei der Herstellung von Folientaschen / Extraction system for plastic vapor

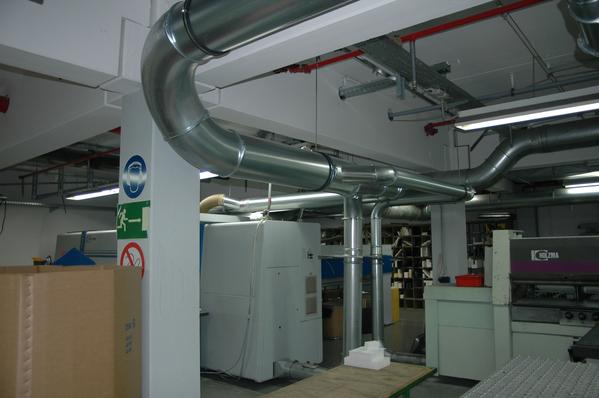

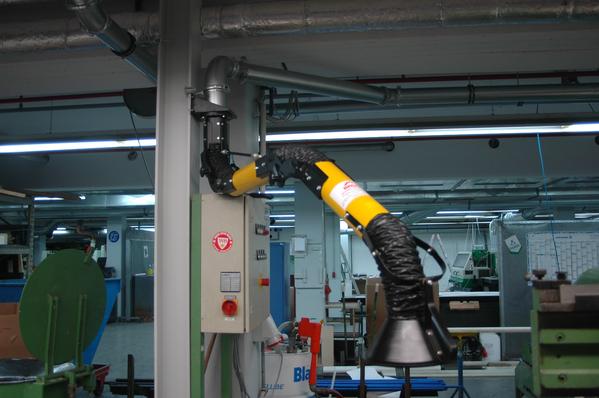

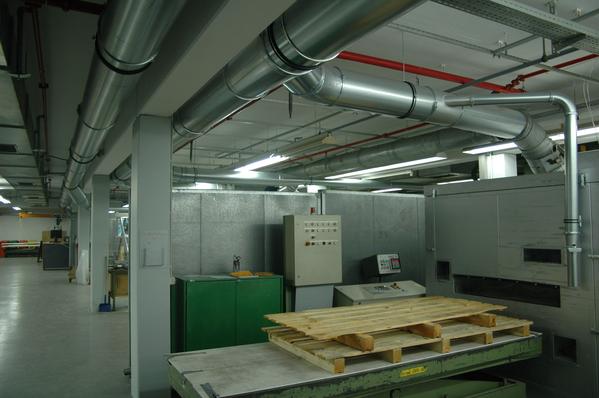

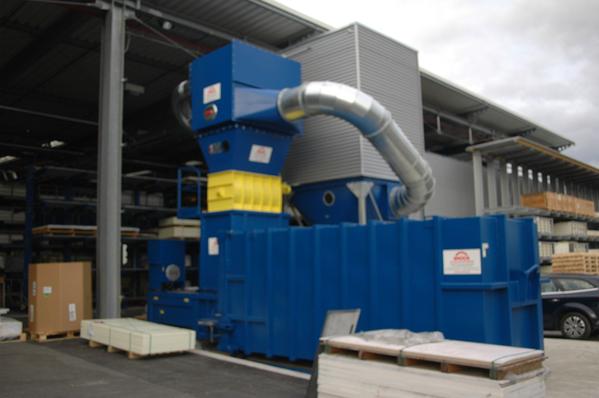

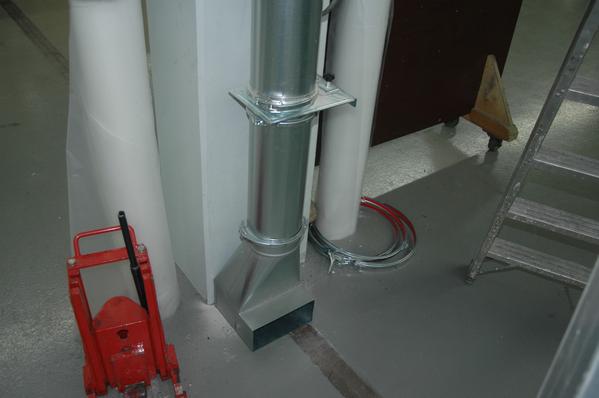

Absaug- und Entsorgungsanlage für Kunststoffspäne

Extraction and waste disposal system for plastic chips

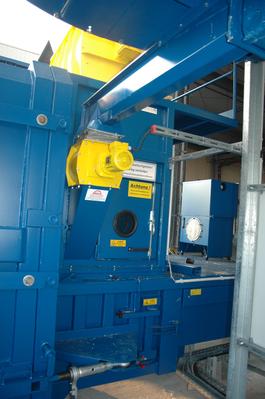

Die abgesaugten Späne werden über einen Materialabscheider der Pressanlage zugeführt.

Der anfallende Feinstaub wird über die Filteranlage und einer Zuführschnecke ebenfalls der Pressanlage zugeführt.

The extracted chips are fed by a materials separator to the press plant.

The fine dust is fed to the filter system and a feed screw to the press system.

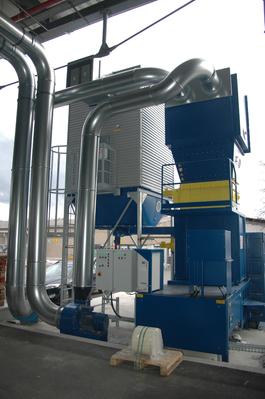

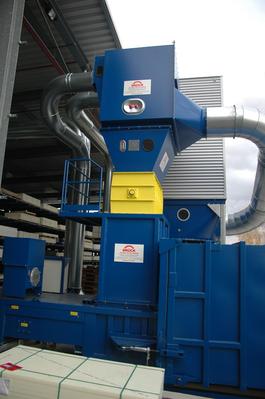

Absaug- und Entsorgungsanlage für Kunststoffspäne / Extraction and waste disposal system for plastic chips
Absaug- und Entsorgungsanlage für Kunststoffspäne / Extraction and waste disposal system for plastic chips
Absaug- und Entsorgungsanlage für Kunststoffspäne / Extraction and waste disposal system for plastic chips
Absaug- und Entsorgungsanlage für Kunststoffspäne / Extraction and waste disposal system for plastic chips
Absaug- und Entsorgungsanlage für Kunststoffspäne / Extraction and waste disposal system for plastic chips
Absaug- und Entsorgungsanlage für Kunststoffspäne / Extraction and waste disposal system for plastic chips
Absaug- und Entsorgungsanlage für Kunststoffspäne / Extraction and waste disposal system for plastic chips
Absaug- und Entsorgungsanlage für Kunststoffspäne / Extraction and waste disposal system for plastic chips
Absaug- und Entsorgungsanlage für Kunststoffspäne / Extraction and waste disposal system for plastic chips

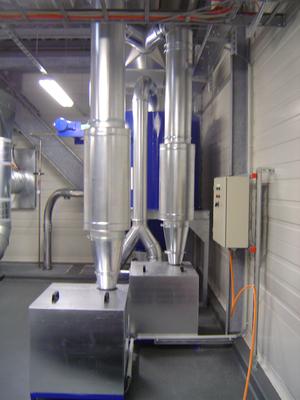

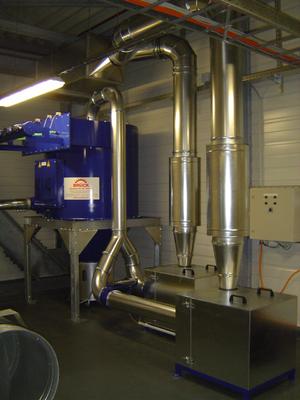

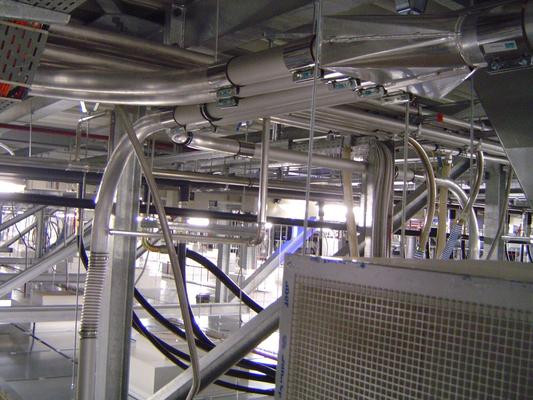

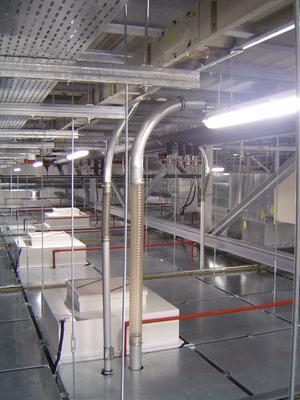

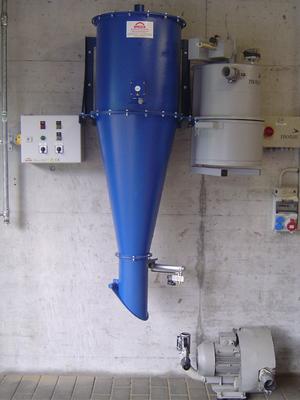

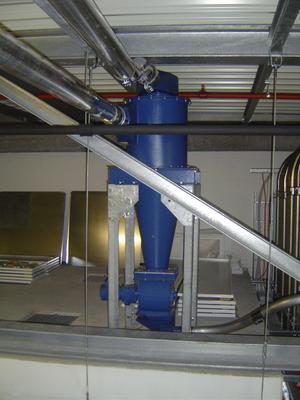

Spritzgussabfallabsauganlage / Hochdruckanlage

Injection molding system / high pressure plant

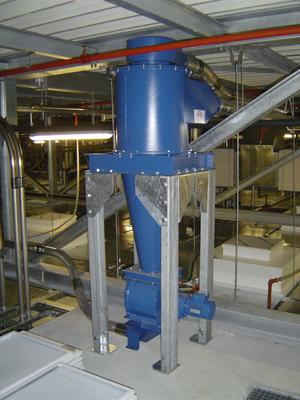

Bei dieser Anlage handelt es sich um eine Hochdruckabsauganlage für Spritzgussabfälle und Stäube die bei der Herstellung von medizinischen Produkten entstehen.

Durch ein Hochdruck-Rohrsystem sind über zehn Maschinen mit der Absauganlage verbunden.

An den fünf Maschinen, wo Spritzgussabfälle entstehen, ist ein Zwischenzyklon in der Rohrleitung integriert. Dort werden die Abfälle separat abgeschieden und mittels einer Hochdruckvakuumpumpe weiter gefördert. Diese Abfälle werden zum zweiten Zyklon gefördert, wo diese in bereitgestellte Behälter abgeschieden werden.

Die staubhaltige Luft sowie der anderen Maschinen wird zu der Filteranlage transportiert und gesammelt.

Es wurden zwei Reinluftventilatoren in einer Schallschutzkabine installiert, wobei einer als Reserve dient. Eine kontinuierliche Drucküberwachung im Rohrsystem garantiert die sichere Funktion der Anlage. Zusätzlich wurde eine Silikon-, Ozon- und Lösemittelabsauganlage installiert.

Die Filteranlage wird während des Betriebes mittels Druckluft gereinigt.

This system is a high pressure extraction system for injection molding waste and dusts accruing in the manufacture of medical products.

By a high-pressure pipe system over ten machines are connected to the extraction system.

The five machines where injection molding waste is produced, a cyclone is integrated in the pipe. The waste is promoted separately and deposited by a high pressure vacuum pump. These wastes are transported to the second cyclone where they are deposited in containers.

The dust-laden air , as well as other machines is transported to the filter unit and collected.

Two clean air ventilators were installed in a soundproof booth, one ventilator serves as a reserve. A continuous monitoring in the pipe system ensures the safe operation of the system. In addition, a silicone , ozone and solvent extraction system was installed.

The filter system is cleaned during operation by means of compressed air.

Spritzgussabfallabsauganlage / Hochdruckanlage / Injection molding system / high pressure plant
Spritzgussabfallabsauganlage / Hochdruckanlage / Injection molding system / high pressure plant
Spritzgussabfallabsauganlage / Hochdruckanlage / Injection molding system / high pressure plant
Spritzgussabfallabsauganlage / Hochdruckanlage / Injection molding system / high pressure plant
Spritzgussabfallabsauganlage / Hochdruckanlage / Injection molding system / high pressure plant
Spritzgussabfallabsauganlage / Hochdruckanlage / Injection molding system / high pressure plant
Spritzgussabfallabsauganlage / Hochdruckanlage / Injection molding system / high pressure plant
Spritzgussabfallabsauganlage / Hochdruckanlage / Injection molding system / high pressure plant

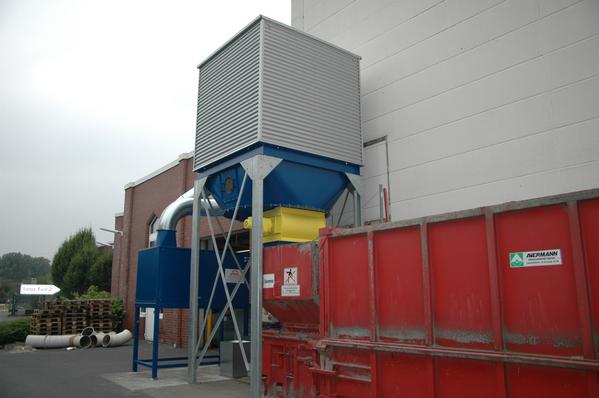

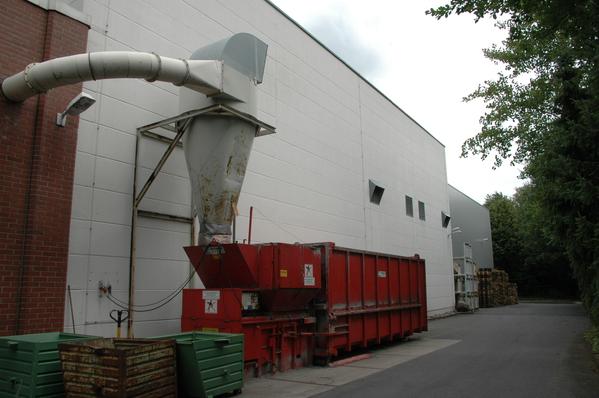

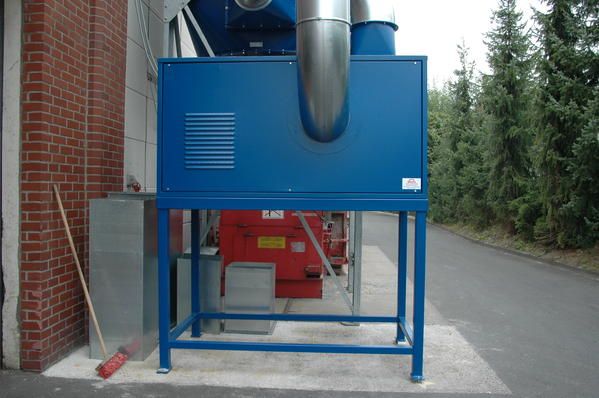

Absauganlage für PE-Folien, Säge- und Schneidemaschinen

Extraction system for plastic chips

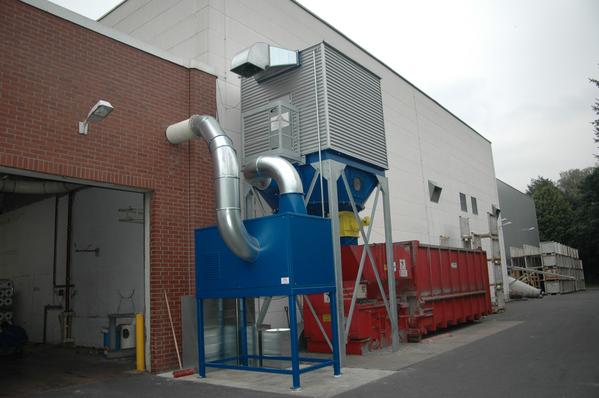

Austausch eines vorhandenen Zyklonabscheider über einer stat. Pressanlage gegen einen Rundfilter mit Vorabscheider und Austrageeinheit.

Abgesaugt werden Kunststoffspäne beim Sägen von Folien.

Replacing an existing cyclone on a press plant against a filter with pre-cleaner and lock.

In place plastic chips are extracted.

Absauganlage für PE-Folien, Säge- und Schneidemaschinen / Extraction system for plastic chips
Absauganlage für PE-Folien, Säge- und Schneidemaschinen / Extraction system for plastic chips
Absauganlage für PE-Folien, Säge- und Schneidemaschinen / Extraction system for plastic chips
Absauganlage für PE-Folien, Säge- und Schneidemaschinen / Extraction system for plastic chips

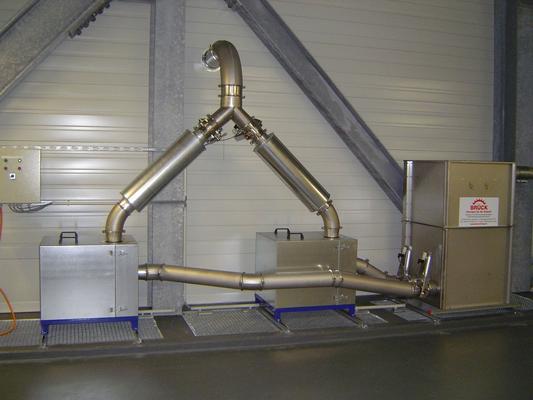

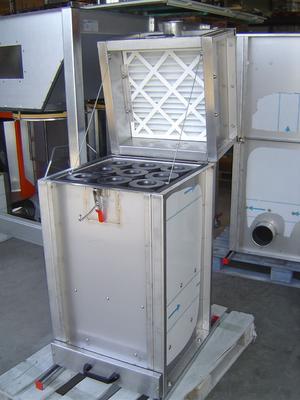

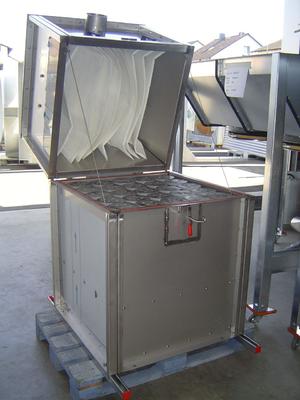

Absauganlage für Silikon und Ozon

Extraction system for silicone and ozone

Absauganlage für Silikon und Ozon / Extraction system for silicone and ozone
Absauganlage für Silikon und Ozon / Extraction system for silicone and ozone
Absauganlage für Silikon und Ozon / Extraction system for silicone and ozone
Absauganlage für Silikon und Ozon / Extraction system for silicone and ozone
Absauganlage für Silikon und Ozon / Extraction system for silicone and ozone

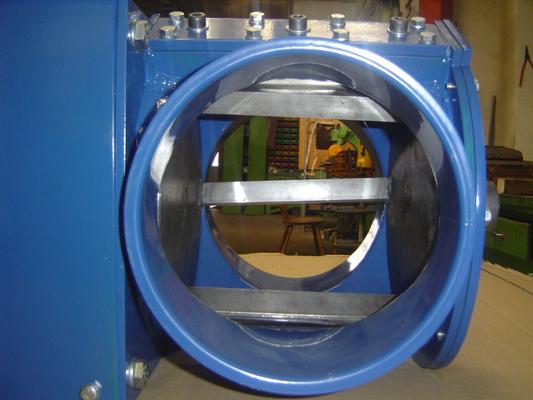

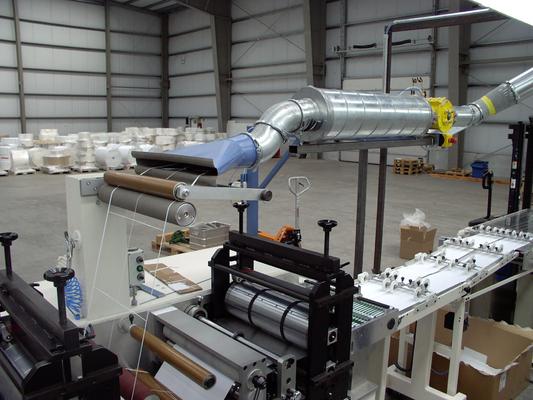

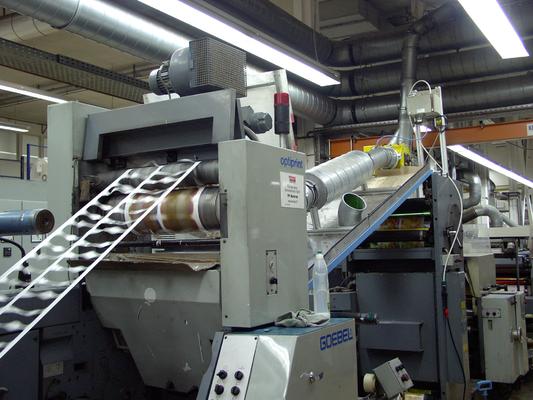

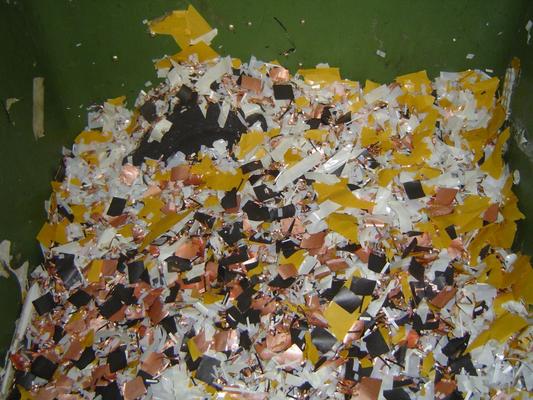

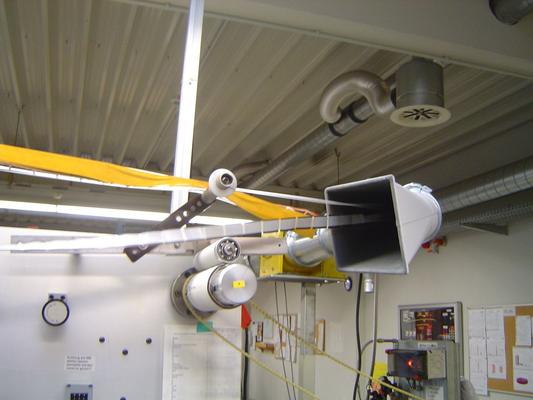

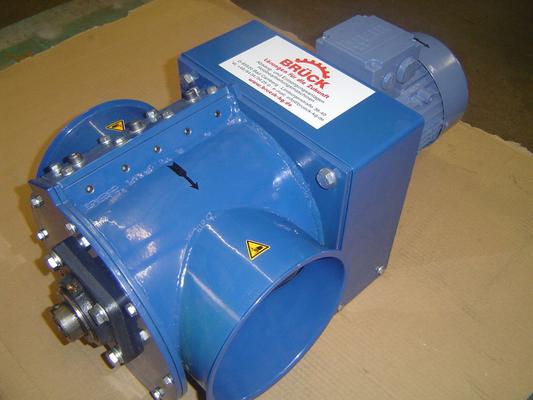

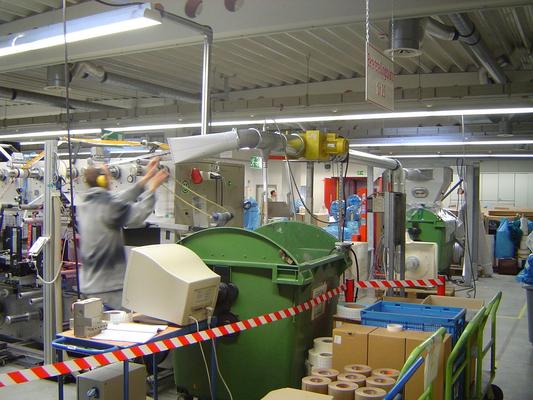

Absauganlage für Stanzgitter und selbstklebende Materialien

Extraction system for punching scrap and self-adhesive label

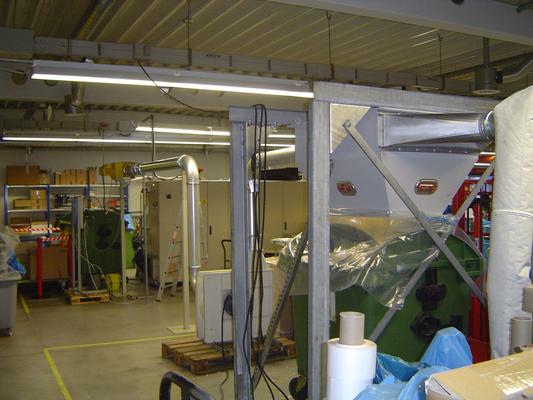

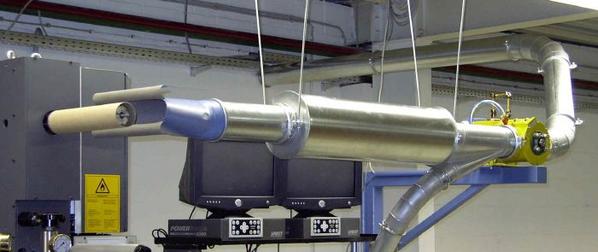

Absauganlage für Stanzgitter und selbstklebende Materialien / Extraction system for punching scrap and self-adhesive label
Absauganlage für Stanzgitter und selbstklebende Materialien / Extraction system for punching scrap and self-adhesive label
Absauganlage für Stanzgitter und selbstklebende Materialien / Extraction system for punching scrap and self-adhesive label
Absauganlage für Stanzgitter und selbstklebende Materialien / Extraction system for punching scrap and self-adhesive label
Absauganlage für Stanzgitter und selbstklebende Materialien / Extraction system for punching scrap and self-adhesive label
Absauganlage für Stanzgitter und selbstklebende Materialien / Extraction system for punching scrap and self-adhesive label
Absauganlage für Stanzgitter und selbstklebende Materialien / Extraction system for punching scrap and self-adhesive label
Absauganlage für Stanzgitter und selbstklebende Materialien / Extraction system for punching scrap and self-adhesive label
Absauganlage für Stanzgitter und selbstklebende Materialien / Extraction system for punching scrap and self-adhesive label

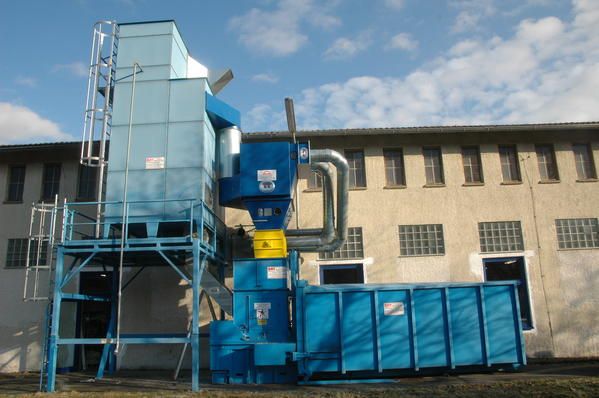

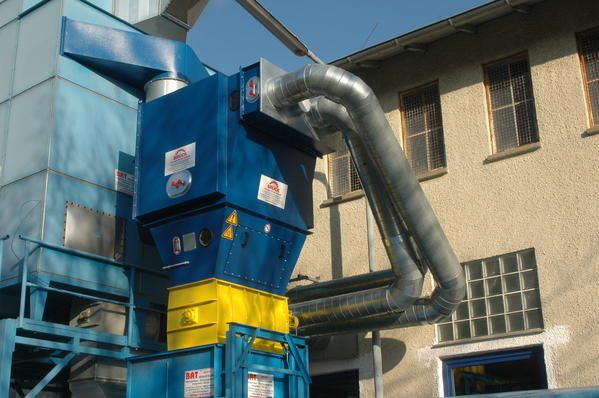

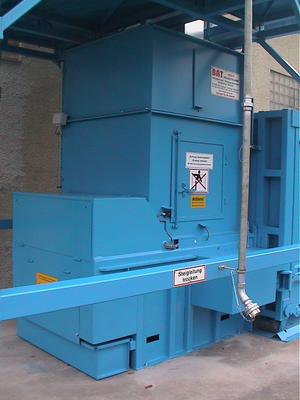

Absaug- und Entsorgungsanlage in einem Unternehmen für Kunststoffzuschnitt

Extraction and waste disposal system for plastic

Absaug- und Entsorgungsanlage in einem Unternehmen für Kunststoffzuschnitt / Extraction and waste disposal system for plastic
Absaug- und Entsorgungsanlage in einem Unternehmen für Kunststoffzuschnitt / Extraction and waste disposal system for plastic
Absaug- und Entsorgungsanlage in einem Unternehmen für Kunststoffzuschnitt / Extraction and waste disposal system for plastic
Absaug- und Entsorgungsanlage in einem Unternehmen für Kunststoffzuschnitt / Extraction and waste disposal system for plastic

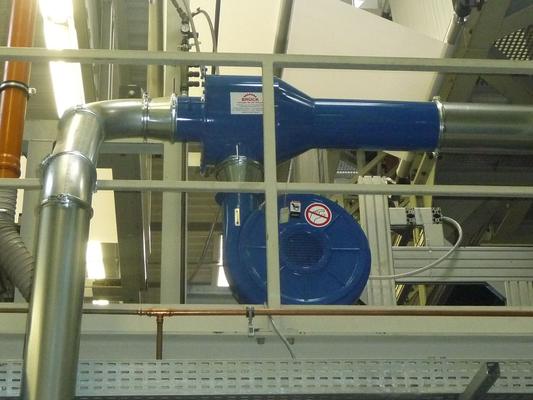

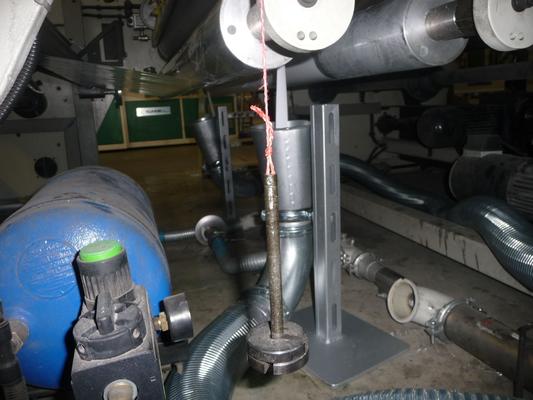

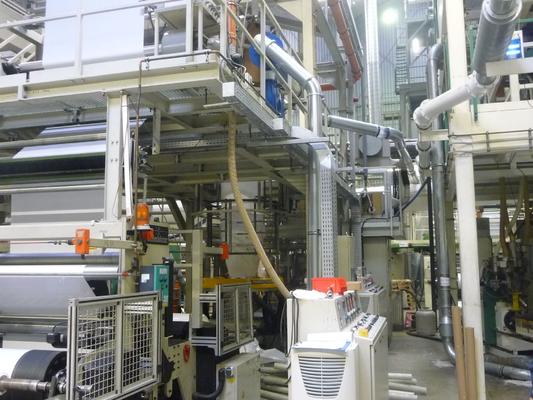

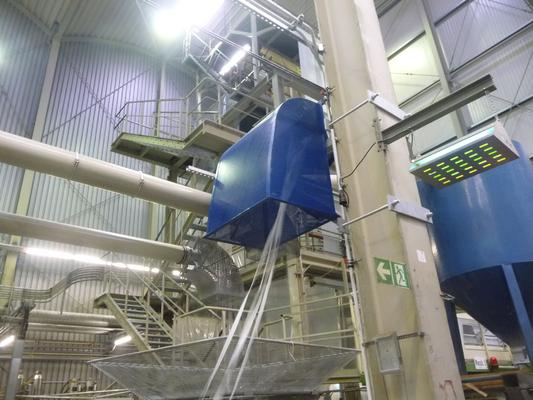

Absauganlage für Plastikrandstreifen

Extraction system for edge strip

Absauganlage für Plastikrandstreifen / Extraction system for edge strip
Absauganlage für Plastikrandstreifen / Extraction system for edge strip
Absauganlage für Plastikrandstreifen / Extraction system for edge strip
Absauganlage für Plastikrandstreifen / Extraction system for edge strip

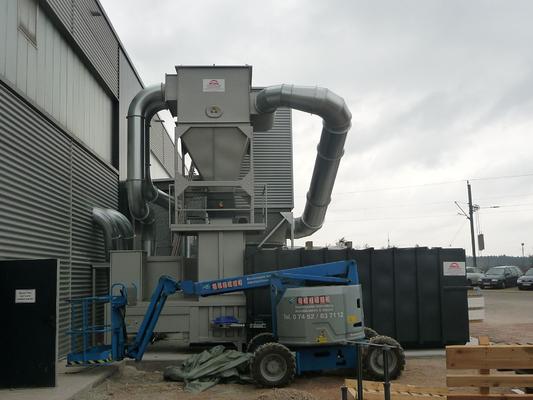

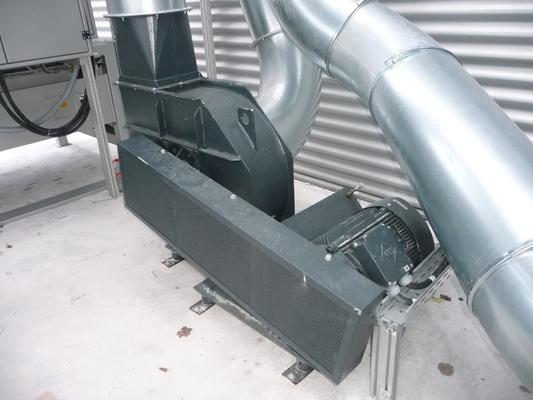

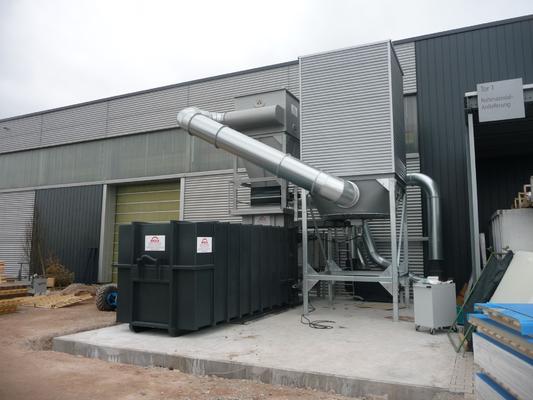

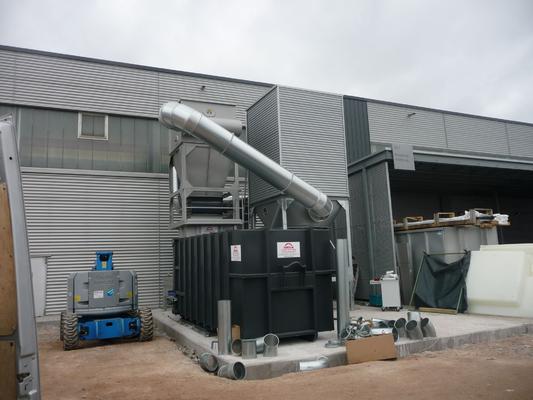

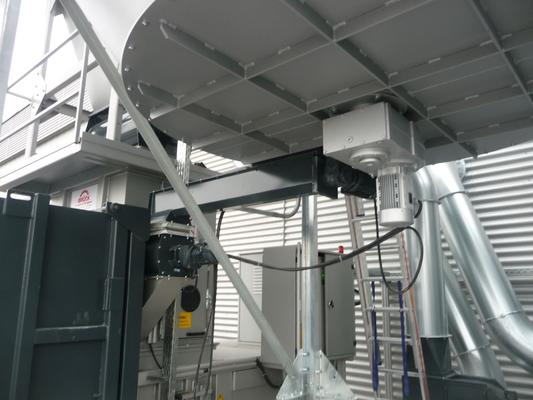

Absaug- und Entsorgungsanlage für drei Bearbeitungszentren

Extraction and waste disposal system for three plastic machining center

Absaug- und Entsorgungsanlage für drei Bearbeitungszentren / Extraction and waste disposal system for three plastic machining center
Absaug- und Entsorgungsanlage für drei Bearbeitungszentren / Extraction and waste disposal system for three plastic machining center
Absaug- und Entsorgungsanlage für drei Bearbeitungszentren / Extraction and waste disposal system for three plastic machining center
Absaug- und Entsorgungsanlage für drei Bearbeitungszentren / Extraction and waste disposal system for three plastic machining center
Absaug- und Entsorgungsanlage für drei Bearbeitungszentren / Extraction and waste disposal system for three plastic machining center

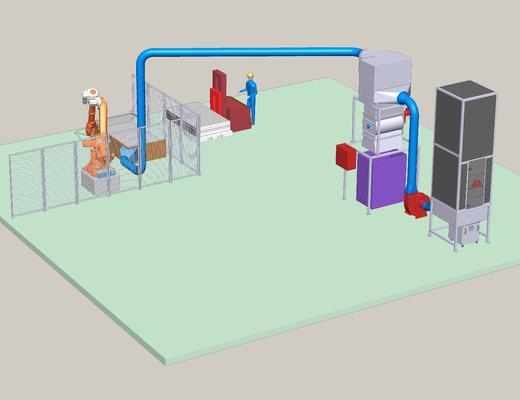

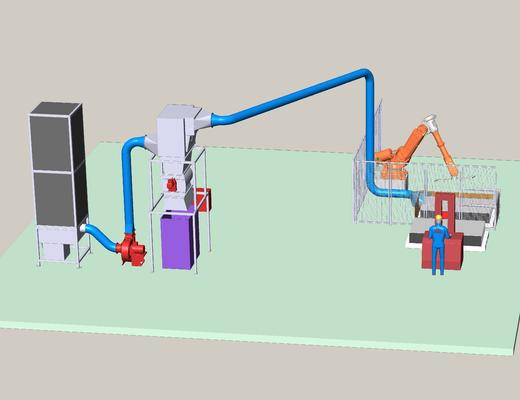

Absauganlage für Folien bei Glaszwischenlagen

Extraction system for plastic as glass interlayer

Absauganlage für Folien bei Glaszwischenlagen / Extraction system for plastic as glass interlayer
Absauganlage für Folien bei Glaszwischenlagen / Extraction system for plastic as glass interlayer

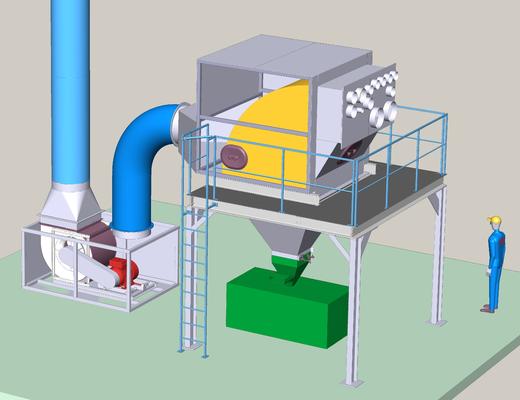

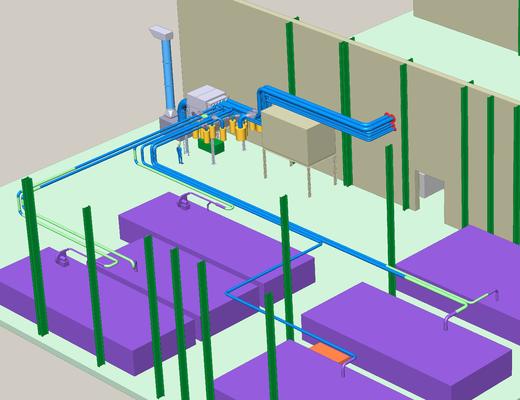

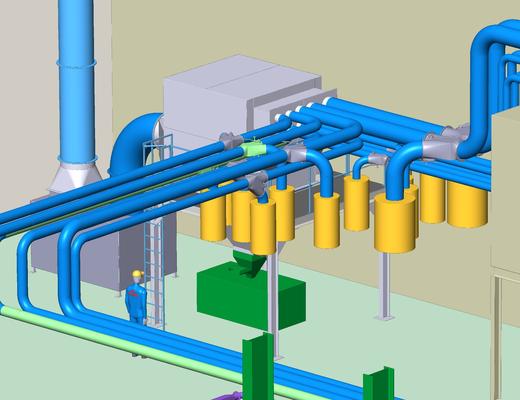

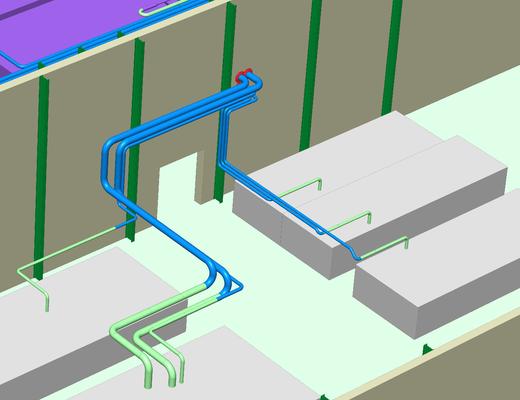

Absauganlage für Endlosrandstreifen mit Abscheider und Abluftventilator

Extraction system for continuous edge strip with separator and exhaust fan

Absauganlage für Endlosrandstreifen mit Abscheider und Abluftventilator / Extraction system for continuous edge strip with separator and exhaust fan
Absauganlage für Endlosrandstreifen mit Abscheider und Abluftventilator / Extraction system for continuous edge strip with separator and exhaust fan
Absauganlage für Endlosrandstreifen mit Abscheider und Abluftventilator / Extraction system for continuous edge strip with separator and exhaust fan
Absauganlage für Endlosrandstreifen mit Abscheider und Abluftventilator / Extraction system for continuous edge strip with separator and exhaust fan

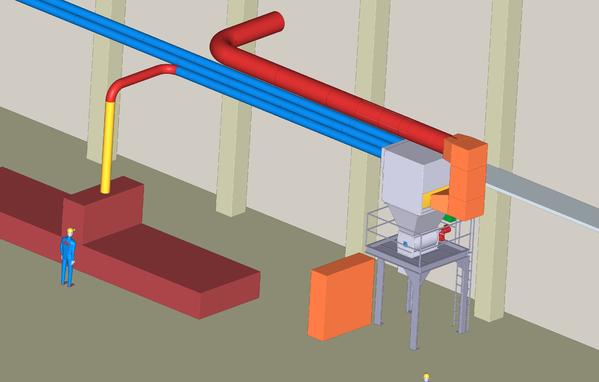

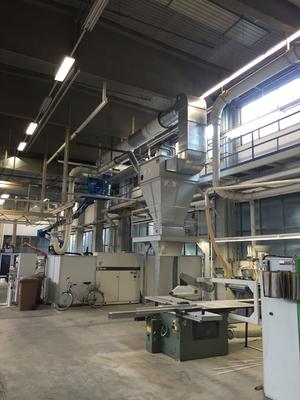

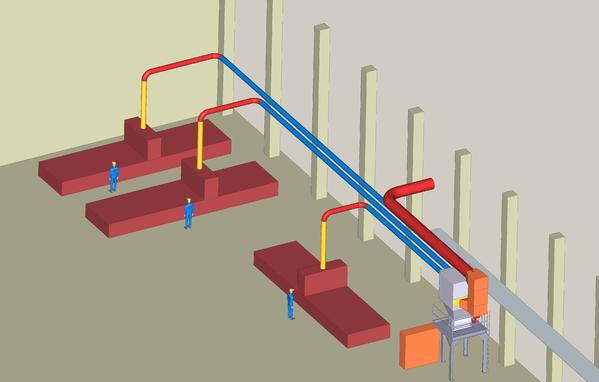

Materialabscheider zur Abscheidung von Kunststoffspänen an Bearbeitungszentren

Material separator for the separation of plastic chips on machining centers

Materialabscheider zur Abscheidung von Kunststoffspänen an Bearbeitungszentren / Material separator for the separation of plastic chips on machining centers
Materialabscheider zur Abscheidung von Kunststoffspänen an Bearbeitungszentren / Material separator for the separation of plastic chips on machining centers
Materialabscheider zur Abscheidung von Kunststoffspänen an Bearbeitungszentren / Material separator for the separation of plastic chips on machining centers

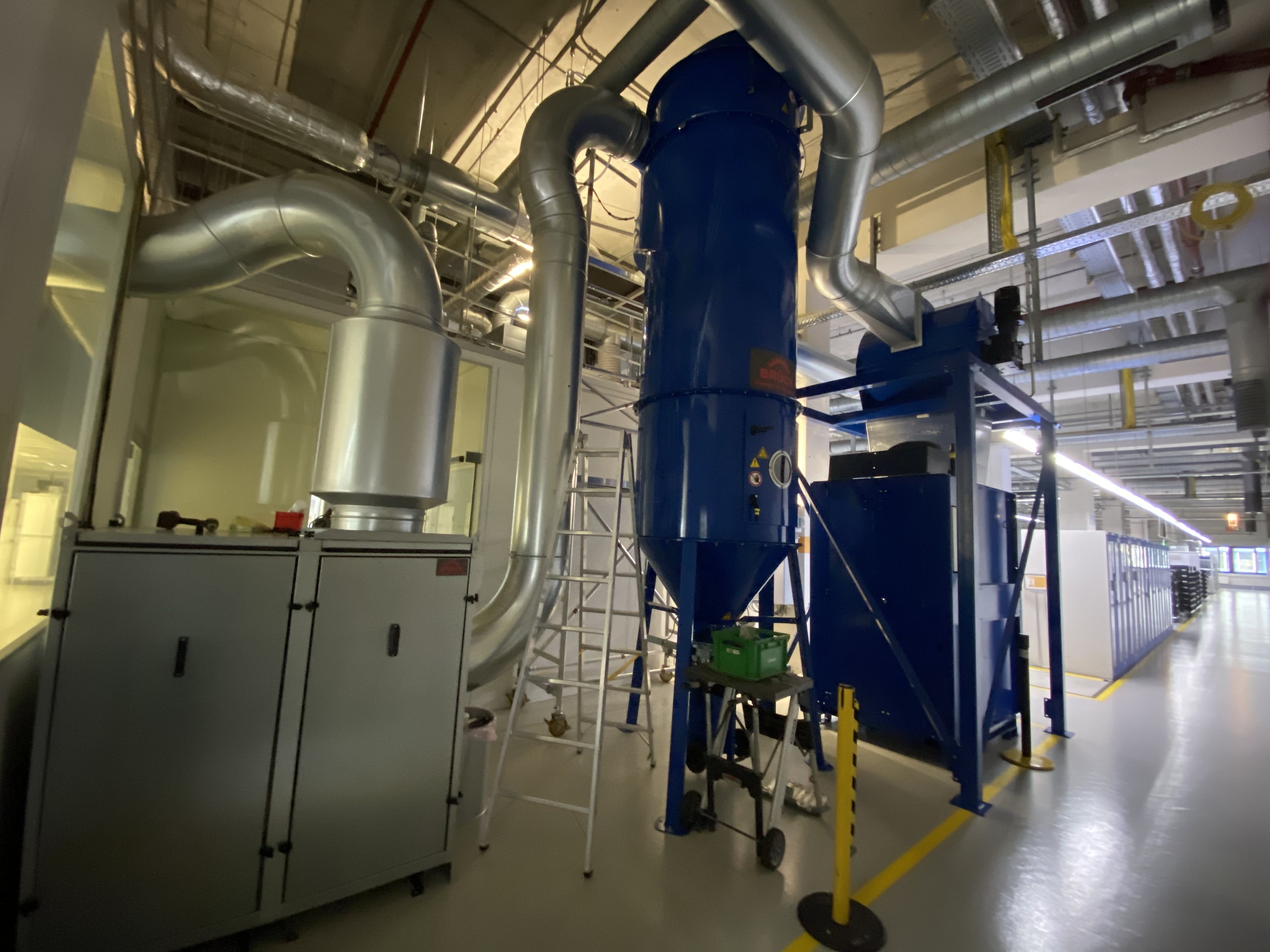

Absaug- und Entsorgungsanlage für Displayfolien

Suction and disposal system for display films

Absaug - und Entsorgungsanlage für Displayfolien

Die Folien werden an zwei automatischen Anlagen automatisch abgezogen und der Absauganlage zugeführt.

An weiteren 6 Handaufgabestellen werden die Folien per Hand der Absauganlage zugeführt.

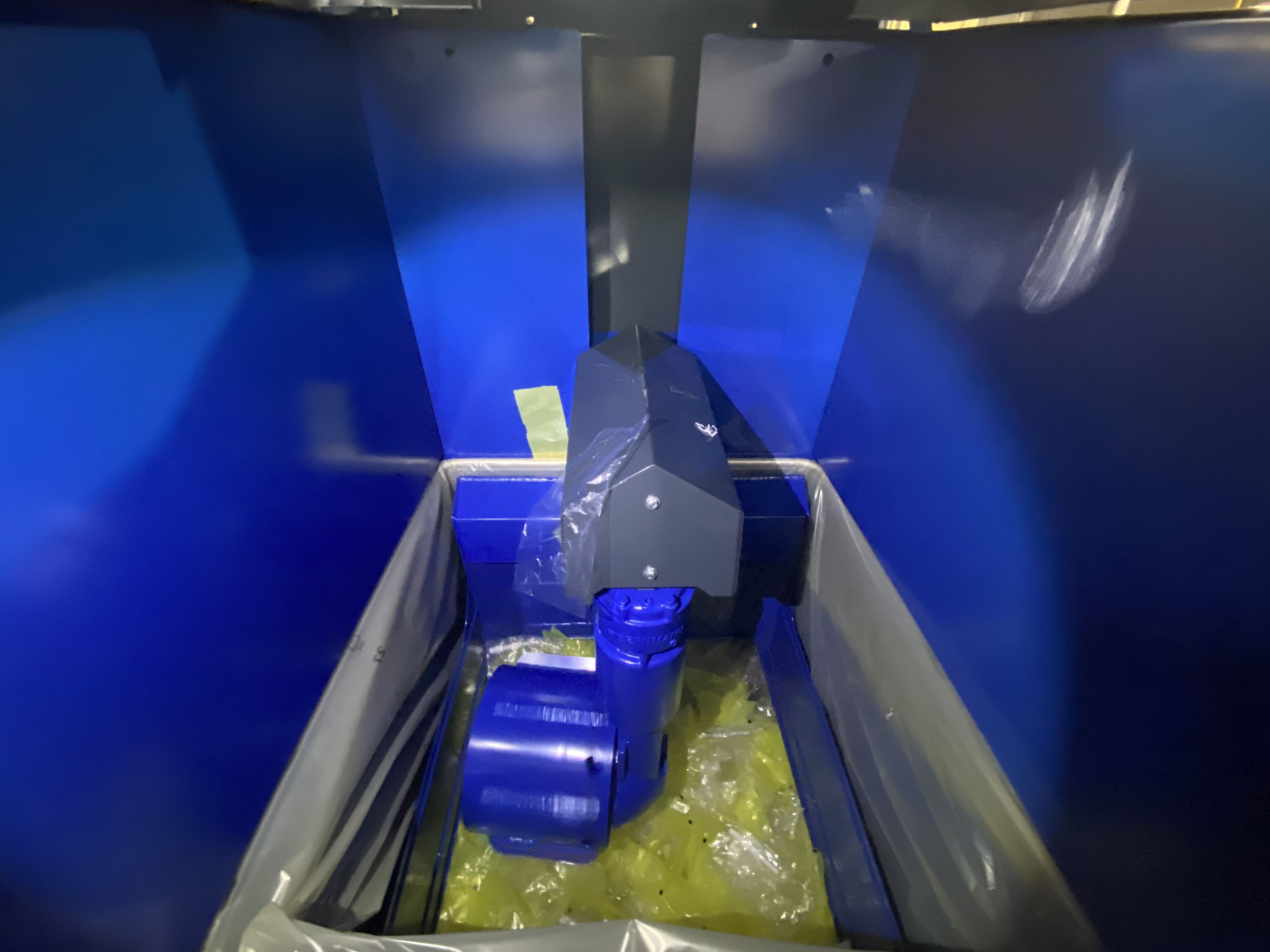

Die abgesaugten Folien werden dann über einen Materialabscheider der Rundballenpresse zugeführt und autoamtisch Verdichtet.

Extraction and disposal system for display films

The foils are automatically removed from two automatic systems and fed to the suction system.

At a further 6 manual feed points, the films are fed into the extraction system by hand.

The extracted foils are then fed to the round baler via a material separator and automatically compressed.

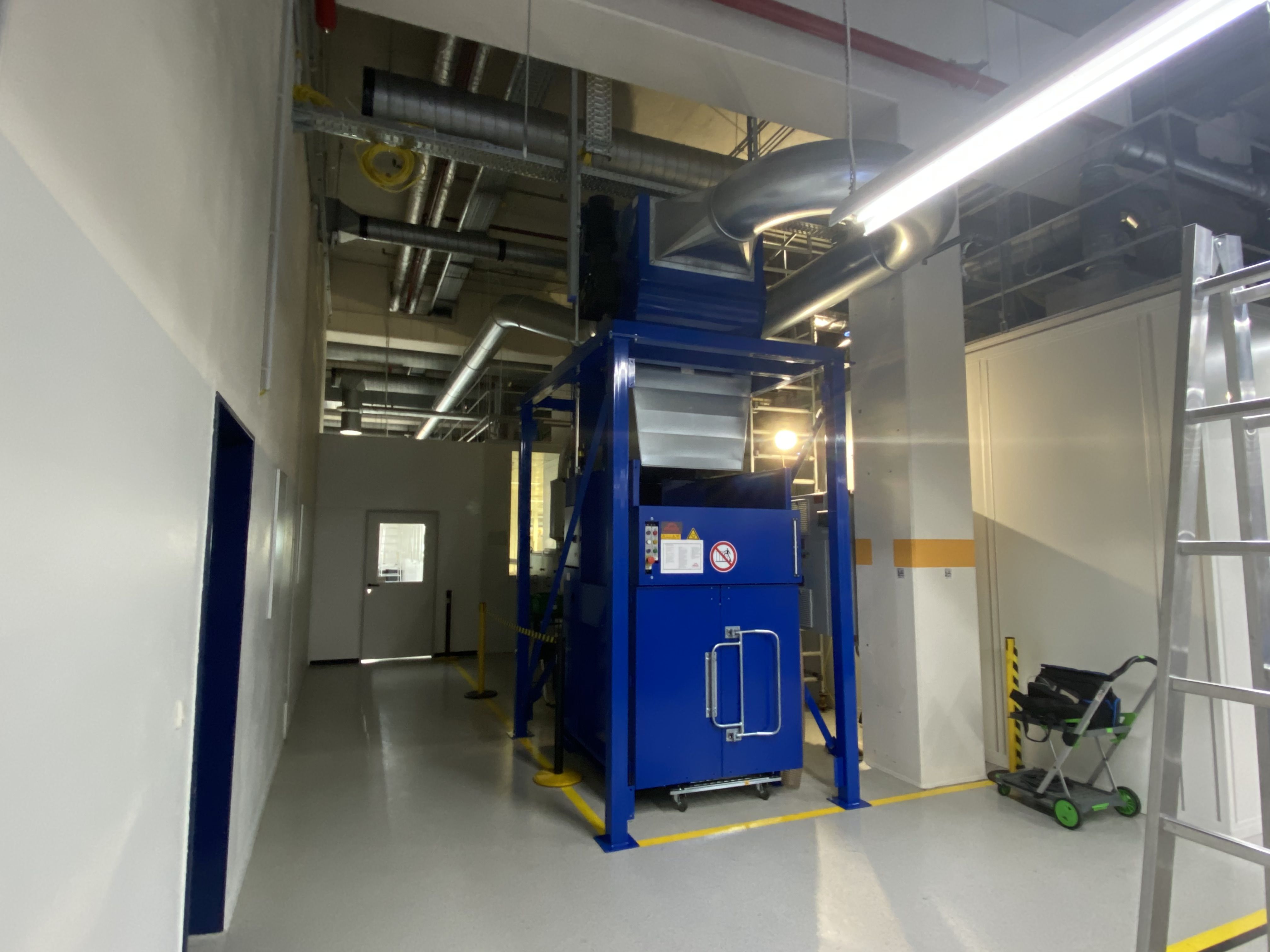

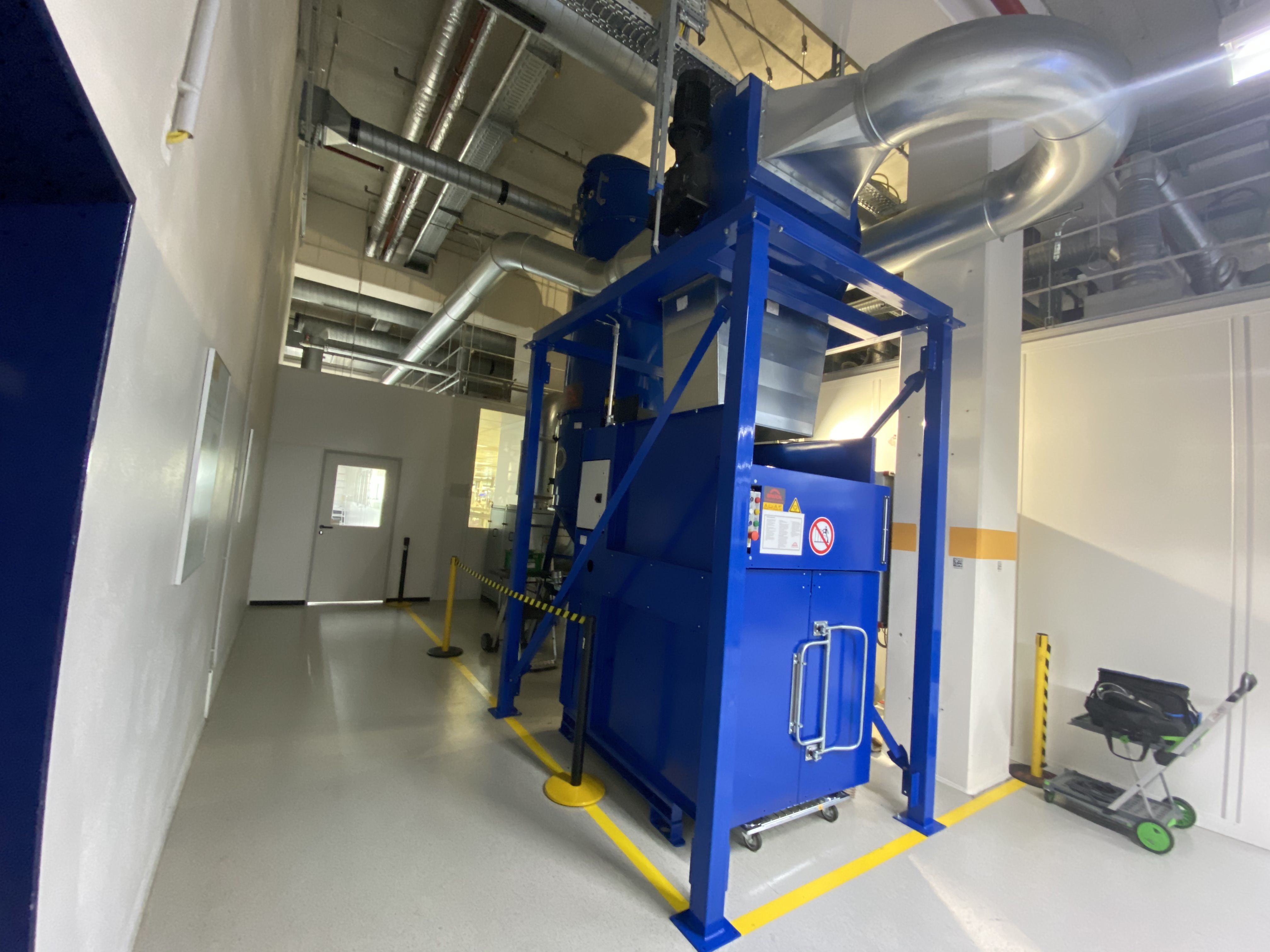

Rundballenpresse
Anlage mit Rohrbrücken
Anlage mit Rohrbrücken
Verdichtungsanlage

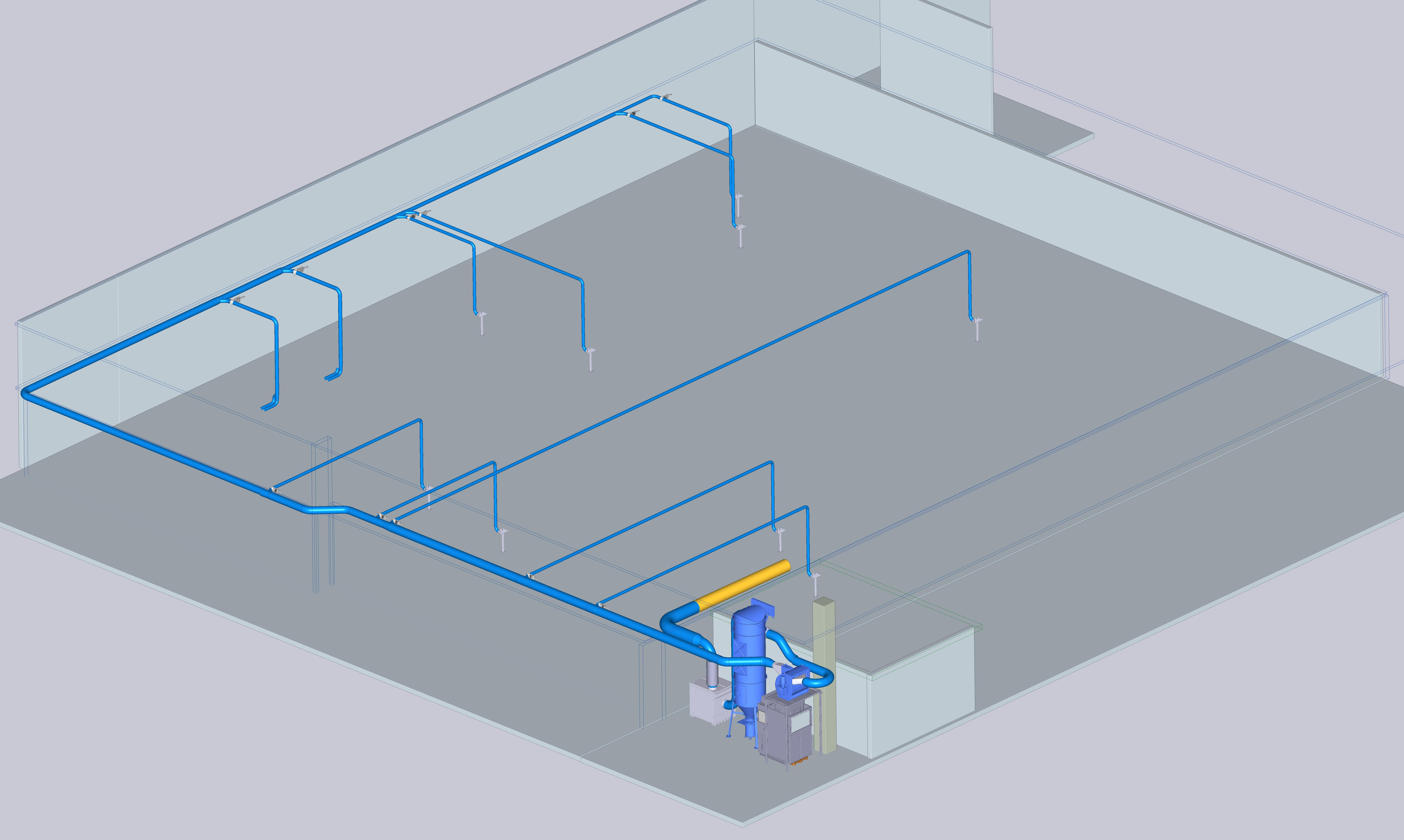

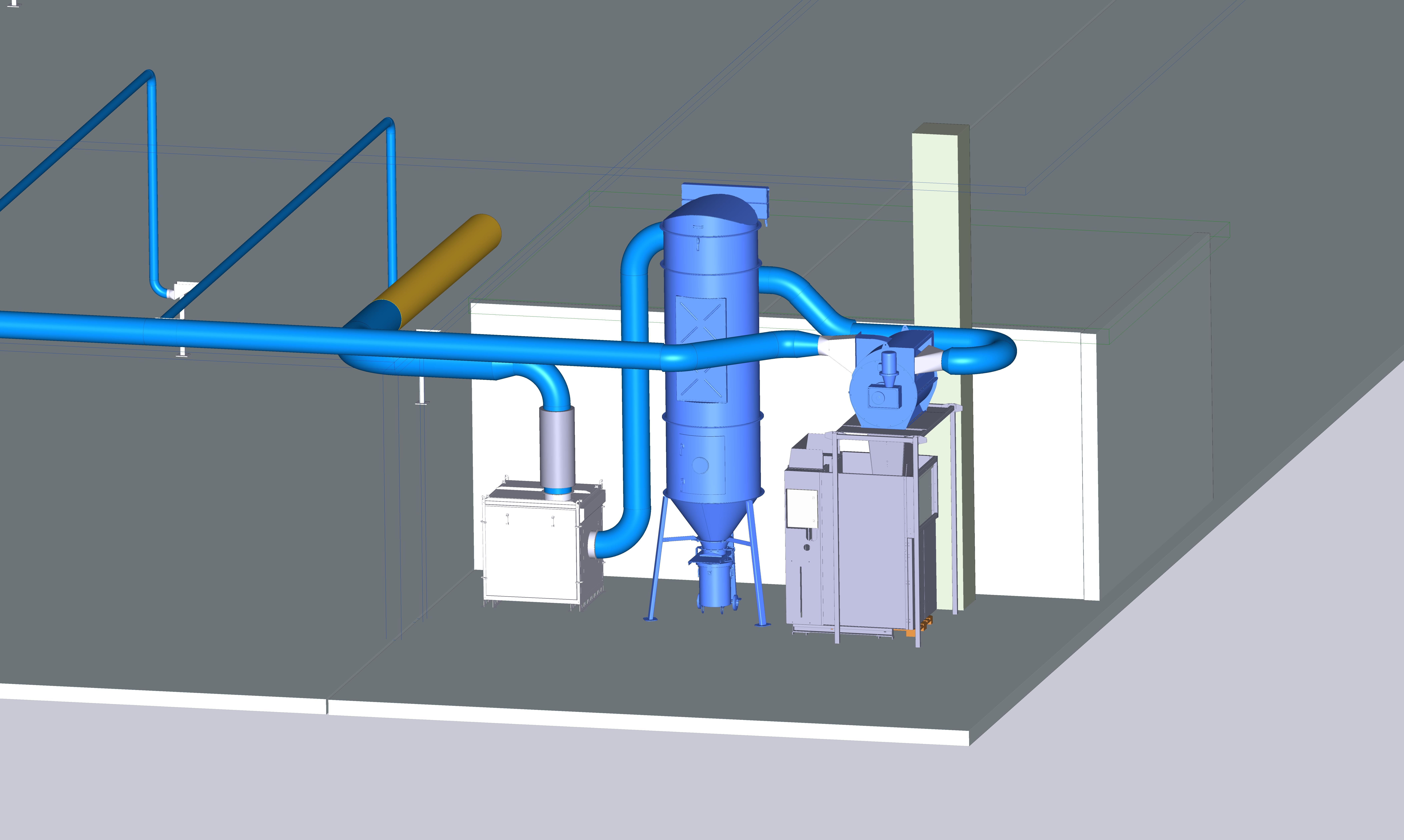

Entwurf
Entwurf
  • Extraction

    Extraction
