Projects – Metal

Extraction of aluminum shavings on a bandsaw

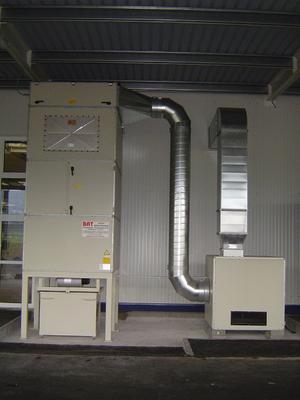

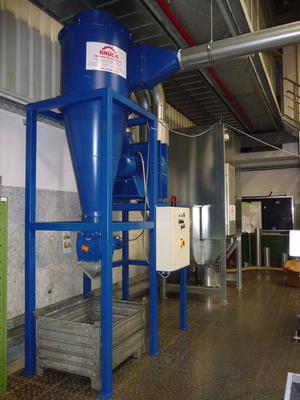

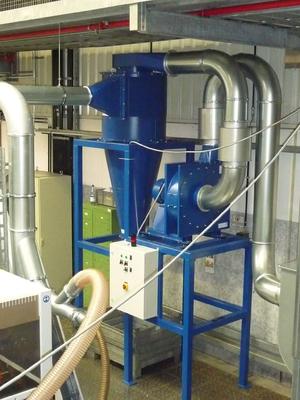

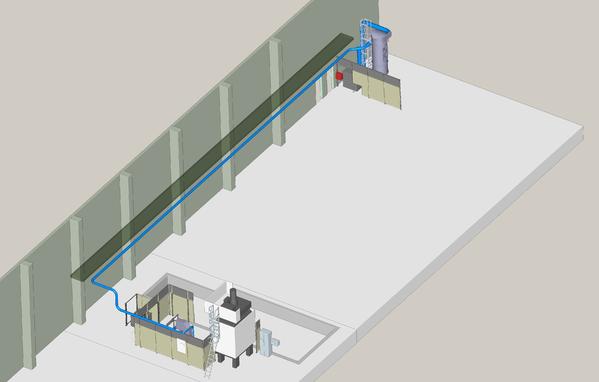

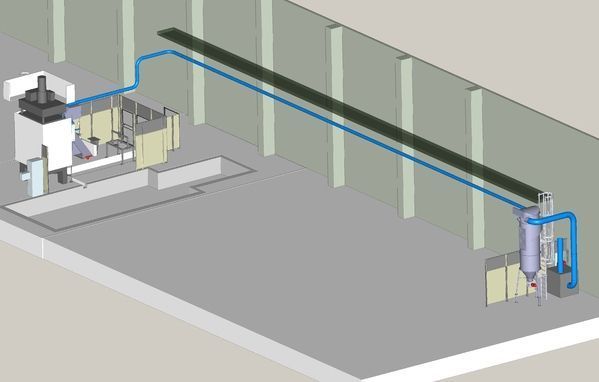

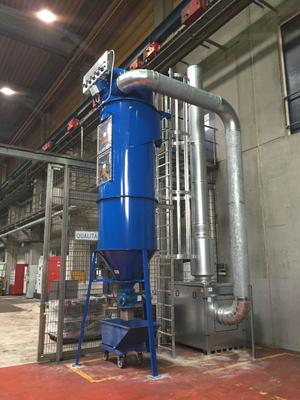

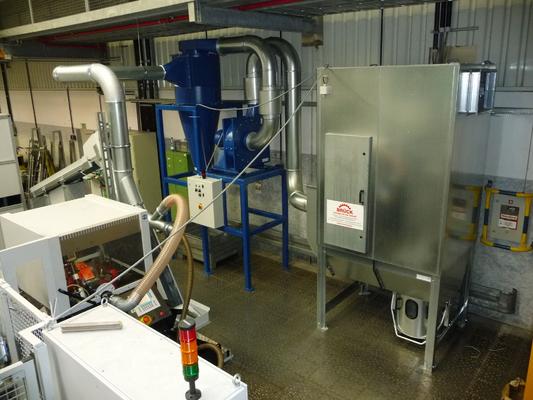

Cyclone filter system with a clean air fan, which can be switched by means of a frequency above 3 steps to the vacuum of 3 bandsaws.

On the band saws aluminum castings are cut.

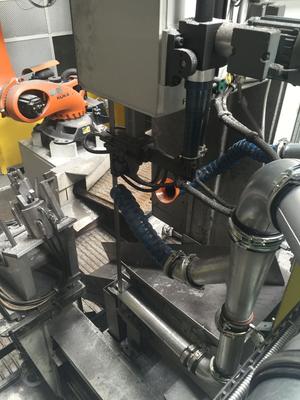

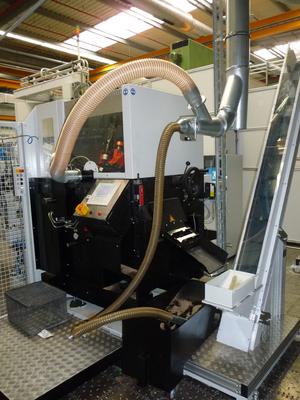

The chips are sucked by 4 detection points and supplied to the filter.

The filter is made, the deposit safe the chips is possible.

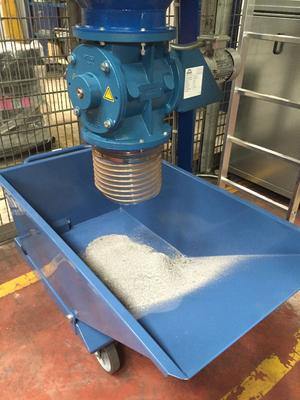

The chips fall without pressure via a Gusszellenradschleuse in a bucket.

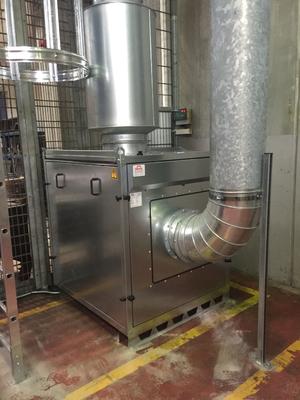

The filtered air is, a silencer such as a bore outlet supplied through the clean air fan the operation.

The cleaning of the filter is done during operation by compressed air technology.

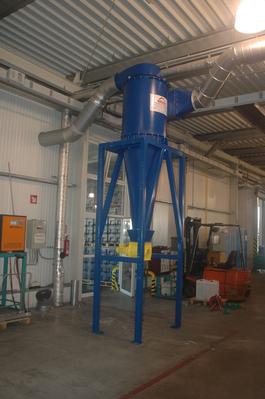

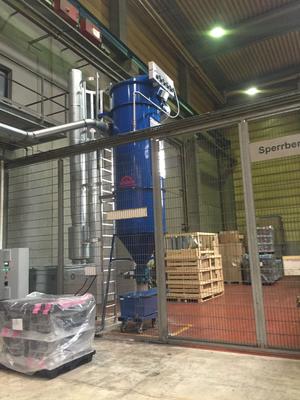

Extraction system for brass chips

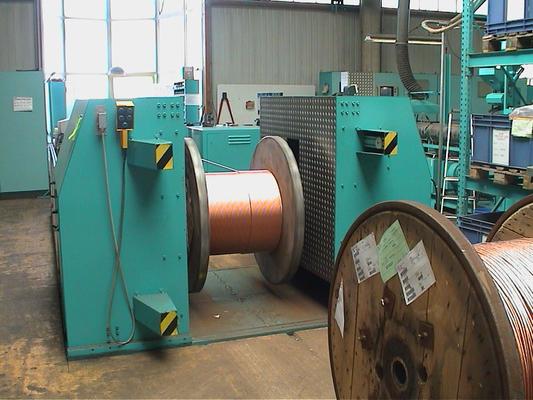

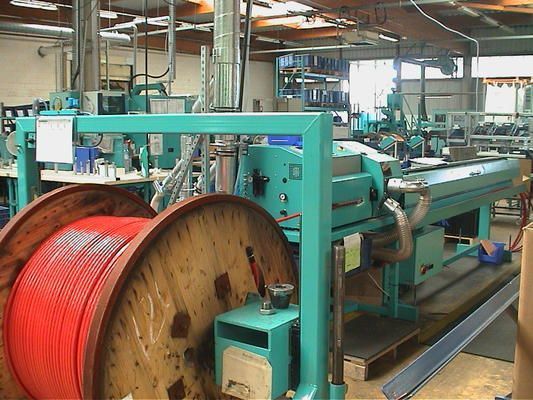

Extraction system for copper chips

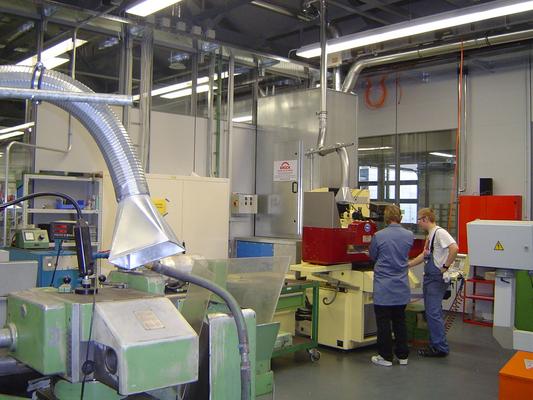

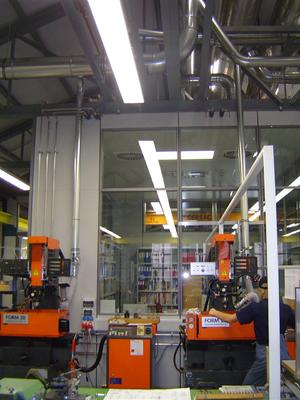

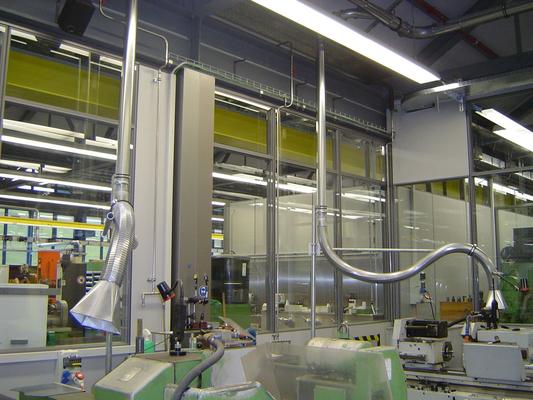

Metal extraction system in tool making
